| Product Id：18 |
| Product Name：6 Digit Time & Date / Text LED Clock |

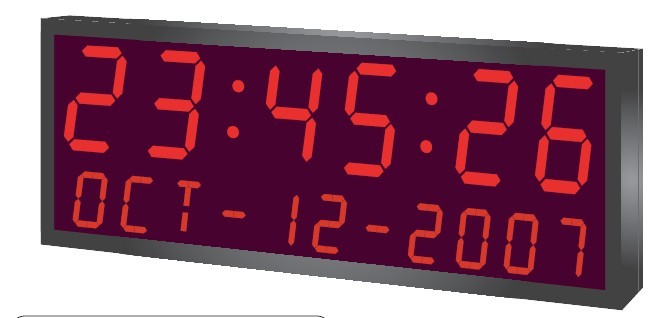

6 Digit Time & Date / Text LED Clock
model: HYTX-6S-4
4" TIME, 2.3" DATE / TEXT RED, GREEN, YELLOW, BLUEFLUSH / SURFACE MOUNT

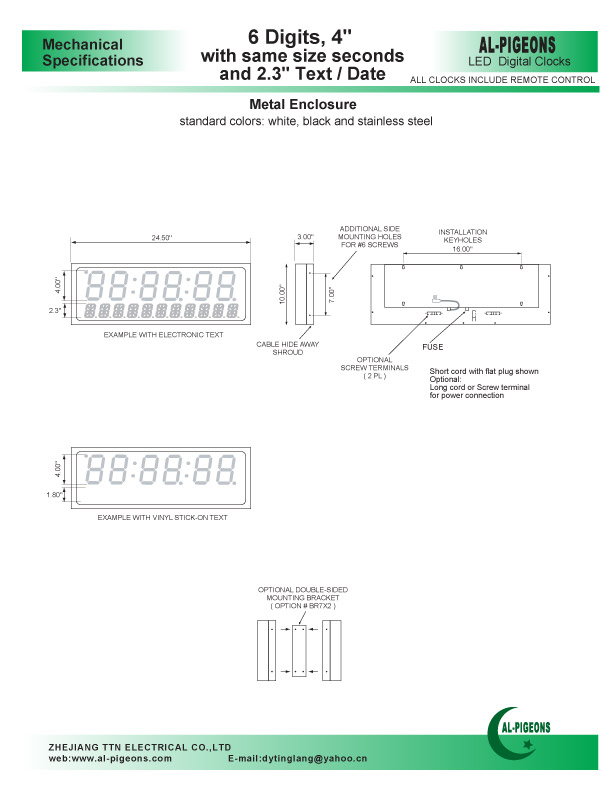

METAL ENCLOSURE
FEATURES and OPTIONS:
* Infra Red hand held REMOTE CONTROL for all functions
* Direct Replacement for existing MASTER SYSTEM CLOCKS
(replaces round, mechanical or electronic)
* 12 or 24 Hour and Military Display Format (user selectable)
* Multiple Master-Slave correction optional modes:
Power Line Carrier sync (Simplex)
2 Wire, RS485 Twisted Pair Sync/Communication
BCD digital, ASCII Time Code
RS232 ( PC port ) or RS485
2 and 3 Wire, 24V Minute Impulse Sync
* Multi-Zone synchronized system options
* Temperature Monitoring and Control options:
Multi-Event Programmable Thermostat
Heating - Cooling Auto Change-Over
Inside and Outside Thermometer function
Min/Max Temperature Memory
Temperature Alarm and Relay outputs
* Stand - Alone or Master - Slave
* Backup:
Selfrecharging backup - NO BATTERY NEEDED
10 Year Lithium battery option
* Atomic Clock or GPS options
* PC Sync Master option
* Day/Date/Month/Year Alternating display selection
* Fully Adjustable Brightness
Manual via remote control
Auto-dimming option
* Julian Day option
* Auto Leap-Year correction
* Day Light Savings correction
* Timers:
Multi-Event Programmable Timer option
Wake-Up Alarm Timer with soft beeper control
Stop-Watch function up to 1/100 sec resolution
External Start/Stop/Reset switch inputs option
Up/Down Presettable Timer and Counter with Alarm
(up to 99hrs:59min:59sec or 999999 counts)
* On-Board Alarms:
Alarm Buzzer, internal or external optional Horns
Alarm Relays options ( Form C, 10Amp/240V )
* NON-GLARE lens
6 DIGIT TIME DISPLAY modes:
MODE 1: .HH:MM:SS ( 12 hour format with am/pm dot )
MODE 2: HH:MM:SS ( 24 hour format)
MODE 3: HH:MM PM ( 12 hour format with am/pm text )
MODE 4: HH:MM:SS ( 24 hour Military format )
MODE 5: HH:MM:SS ( UP/DOWN Timer modes )
MODE 6: MM:SS:hh ( UP/DOWN Timer modes with 1/100 sec )
MODE 7: d 267 07 ( JULIAN DAY with Year )
DATE/TEXT DISPLAY modes:
MODE 1: FRI-OCT-12
MODE 2: OCT-12-FRI
MODE 3: 12-OCT-FRI
MODE 4: FRI-12-OCT
MODE 5: 12-OCT-2007
MODE 6: OCT-12-2007
MODE 7: 2007-12-OCT
MODE 8: HH-MM-SS ( timer or counter )
MODE 9: TIMER MM-SS ( timer )
MODE 10: DDD-HH-MM.SS ( timer or counter )
MODE 11: IN 25.3 C (or: 77.5 F)
MODE 12: OUT 16.4 C (or: 61.5 F)
MODE 13: TEMP. 25.3 C (or: 77.5 F)
MODE 14: DAY 245 ( Julian day of the year )
MODE 15: HH-MM-SS AM/PM ( Real Time Clock )
MODE 16: TIME ZONE / TEXT DISPLAY
OTHER OPTIONS:
1. INTERNAL POWER SUPPLY FOR 115V or 220V , 50/60Hz
2. 12V and 24V DC or AC SUPPLY OPTION
3. SYSTEM MASTER SYNC WITH RS-232/485 COMPUTER INTERFACE / TWISTER PAIR
4. SYSTEM MASTER SYNC WITH SERIAL COMMUNICATION OVER POWER LINE
5. SYSTEM MASTER SYNC OVER POWER LINE CARRIER (HIGH AND LOW VOLTAGE)
6. SYSTEM MASTER SYNC 2 AND 3 WIRE, 24 VOLT MINUTE IMPULSE
7. SYSTEM MASTER SYNC ASCII TIME CODE FORMAT 0, 1, 2, 3, 4 ON RS-232/485 |
|
|
|
|
