| Product Id：25 |
| Product Name：4 Digit Time & Date Glass Square Clock |

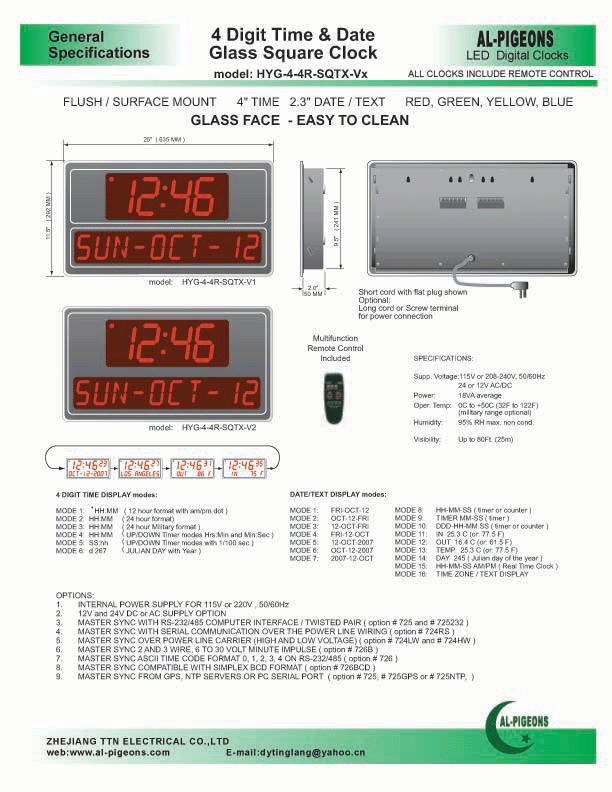

4 Digit Time & Date Glass Square Clock
model: HYG-4-4R-SQTX-VxFLUSH / SURFACE MOUNT
4" TIME 2.3" DATE / TEXT RED, GREEN, YELLOW, BLUE
GLASS FACE - EASY TO CLEAN4 DIGIT TIME DISPLAY modes:
MODE 1: .HH:MM ( 12 hour format with am/pm dot )
MODE 2: HH:MM ( 24 hour format)
MODE 3: HH:MM ( 24 hour Military format )
MODE 4: HH:MM ( UP/DOWN Timer modes Hrs:Min and Min:Sec )
MODE 5: SS:hh ( UP/DOWN Timer modes with 1/100 sec )
MODE 6: d 267 ( JULIAN DAY with Year )
DATE/TEXT DISPLAY modes:
MODE 1: FRI-OCT-12
MODE 2: OCT-12-FRI
MODE 3: 12-OCT-FRI
MODE 4: FRI-12-OCT
MODE 5: 12-OCT-2007
MODE 6: OCT-12-2007
MODE 7: 2007-12-OCT
MODE 8: HH-MM-SS ( timer or counter )
MODE 9: TIMER MM-SS ( timer )
MODE 10: DDD-HH-MM.SS ( timer or counter )
MODE 11: IN 25.3 C (or: 77.5 F)
MODE 12: OUT 16.4 C (or: 61.5 F)
MODE 13: TEMP. 25.3 C (or: 77.5 F)
MODE 14: DAY 245 ( Julian day of the year )
MODE 15: HH-MM-SS AM/PM ( Real Time Clock )
MODE 16: TIME ZONE / TEXT DISPLAYSPECIFICATIONS:
Supp. Voltage:115V or 208-240V, 50/60Hz
24 or 12V AC/DC
Power: 18VA average
Oper. Temp: 0C to +50C (32F to 122F)
(military range optional)
Humidity: 95% RH max. non cond.
Visibility: Up to 80Ft. (25m) OPTIONS:
1. INTERNAL POWER SUPPLY FOR 115V or 220V , 50/60Hz
2. 12V and 24V DC or AC SUPPLY OPTION
3. MASTER SYNC WITH RS-232/485 COMPUTER INTERFACE / TWISTED PAIR ( option # 725 and # 725232 )
4. MASTER SYNC WITH SERIAL COMMUNICATION OVER THE POWER LINE WIRING ( option # 724RS )
5. MASTER SYNC OVER POWER LINE CARRIER (HIGH AND LOW VOLTAGE) ( option # 724LW and # 724HW )
6. MASTER SYNC 2 AND 3 WIRE, 6 TO 30 VOLT MINUTE IMPULSE ( option # 726B )
7. MASTER SYNC ASCII TIME CODE FORMAT 0, 1, 2, 3, 4 ON RS-232/485 ( option # 726 )
8. MASTER SYNC COMPATIBLE WITH SIMPLEX BCD FORMAT ( option # 726BCD )
9. MASTER SYNC FROM GPS, NTP SERVERS OR PC SERIAL PORT ( option # 725, # 725GPS or # 725NTP, ) |
|
|
|
|
